160A Single-Output Integrated Voltage Regulator

Fe1766 is a single-output, 16-phase integrated DC-DC step-down power converterdelivering up to 160A output current in a compact 35.5 mm² package.

Download Product Brief ↓

Fe1766 - Product Overview

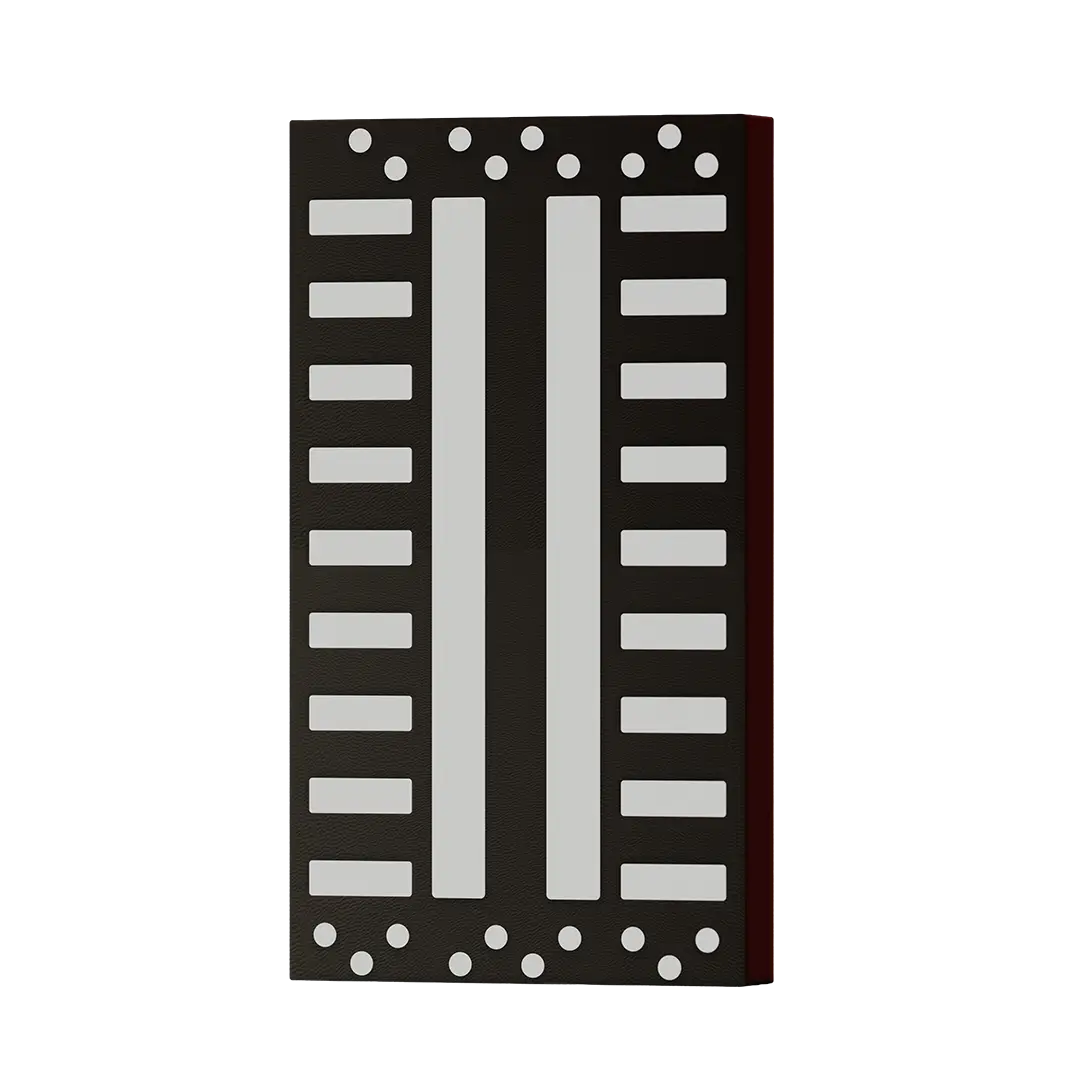

The Fe1766 integrated voltage regulator is a single-output, self-contained power converter designed to deliver very high current close to advanced digital loads.

Its 16-phase interleaved buck converter uses a fully integrated powertrain that includes Ferric’s advanced power inductors, power switches, FETs, capacitors, and digital control circuitry.

The Fe1766 combines high current capability, precise voltage regulation, integrated power management, and fast transient response in a compact package designed to reduce board area, layout complexity, and external component count.

Fe1766 has been recognized with an EDN Product of the Year Award in the Power category.
‍
The award highlights a solution that sets new benchmarks for current density, enabling next-generation high-performance SoCs, data center processors, and advanced platforms including xPUs, ASICs, and FPGAs.

See the official announcement →

Key Features

Single-output architecture

Up to 160A steady-state output current

16-phase interleaved buck converter

Fully integrated power switches

Integrated power inductors

Peak efficiency up to 90%

1.2V to 2.0V input voltage range

0.25V to 1.5V output voltage range

Switching frequency from 5MHz to 100MHz

15MHz typical switching frequency

5MHz loop bandwidth

Differential point-of-load sensing

Gang operation

Automatic phase shedding

Input voltage telemetry

Output voltage telemetry

Output current telemetry

Temperature telemetry

PMBus 1.4-compliant serial interface

AVSBus 2.0-compliant serial interface

Dynamic Voltage Scaling

UVLO, OVP, UVP, OCP, OCP Warn, VRHOT, and OTP fault response

Compact 35.5 mm² package

Parameter	Symbol	Conditions	Min	Typ	Max	Unit
VIN Voltage Range	V_IN	AVDD18 ≥ V_IN	1.2	1.8	2.0	V
Output Voltage Range	V_OUT	V_IN ≥ 1.8V	0.25		1.5	V
Conversion Ratio	M = V_OUT/V_IN	V_IN < 1.8V			83.3	%
Output Voltage Resolution	V_OUT,RES			1.7		mV
Steady State Output Current	I_OUT,TDC				160	A
Number of Powertrain Phases	N_PHASES		2		16	Phases
Width	W		4.388	4.428	4.468	mm
Length	L		7.978	8.028	8.078	mm
Area	A			35.5		mm²
Thickness	T		0.980	1.000	1.020	mm
Current Density (TDC)	j_max,TDC				4.5	A/mm²
DC Line Regulation	(ΔV_OUT/V_OUT)_Line	V_IN = [1.2, 2.0]V		± 0.5		%
DC Load Regulation	(ΔV_OUT/V_OUT)_Load	I_OUT = [0, 160]A		± 0.5		%
Switching Frequency	f_SW		5	15	60	MHz
Junction Temperature	T_J		-40		125	°C
Thermal Resistance Junction to Top	Θ_JC,TOP			0.2		°C/W
Thermal Resistance Junction to Bottom	Θ_JC,BOT			3.1		°C/W
